The CTM-ONE wireless gateway is an industrial grade device which provides an “always on, always connected” solution using an LTE radio for cellular communication.

The CTM-ONE device has a CAN bus port that supports two CAN interfaces. For ease of installation in mobile applications, connecting the supplied OBDII or J1939 cable is all that is required to provide power. A locking power connection is also available for installations where CAN is not available or required. The DC power connection supports 6-36 Volts DC with ignition-sense detection. Though these are the typical power sources used for the CTM-ONE, there are some alternatives available which can be added on to the device at any time.

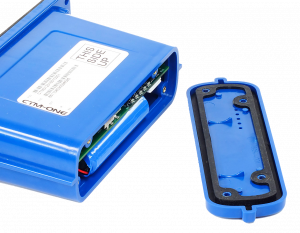

CTM-ONE Internal Battery

The CTM-ONE supports an optional rechargeable backup battery for last-gasp and tamper detection applications. Any variant of the CTM-ONE can support the battery option. It is a great option to ensure a continuous power supply to the device in cases where the CTM-ONE may lose power, even for a short period of time.

Battery Specifications:

The CTM-ONE uses a cylindrical wide-temperature lithium-ion battery with a protection circuit. Key features include:

• Nominal voltage: 3.6V
• Nominal capacity: 3000mAh
• Over voltage protection mode
• Over current protection mode
• Over temperature protection mode

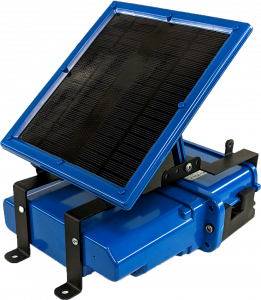

CTM-ONE M Solar

The CTM-ONE M Solar is a standalone rugged system for remote telemetry monitoring. It has an integrated solar panel and battery, with advanced logic for monitoring charge level and battery level to optimize reporting in the most adverse of conditions. It is designed to be installed in the field with minimal tools and setup.

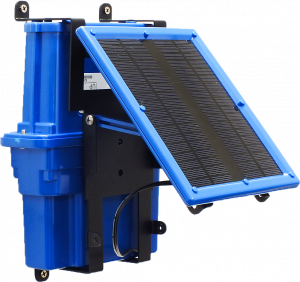

The CTM-ONE M can be mounted vertically or horizontally. The mounting bracket can be adapted for pipe, wall, or platform mounting.

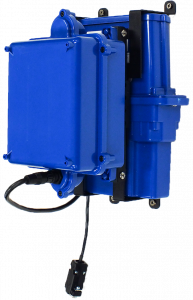

CTM-ONE Tadiran Battery

The CTM-ONE Tadiran battery is a compact alternative for devices located in the field which may not have access to sunlight for a solar powered option. The built-in battery ensures continuous power supply to the device no matter where it is located.

Battery Specifications:

The CTM-ONE Tadiran is a battery-powered option using industrial lithium-ion battery technology. Key features include:

• Working temperature range: -40°C to +85°C
• Nominal capacity: 57Ah
• 20+ year operational life
• Over voltage protection mode
• Over current protection mode
• Over temperature protection mode

To learn more about the alternate power sources we offer and how they can help your organization, please see our CTM-ONE Accessories page or contact us at info@cypress.bc.ca.
